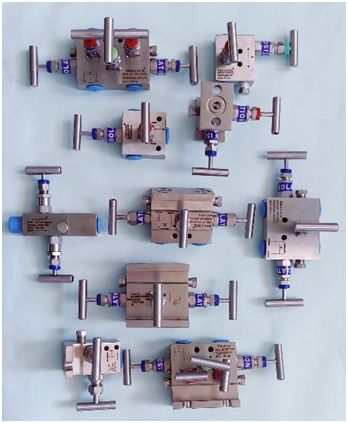

Manifolds Valves Manufacturer

PED-LOCK a wide array of configurations are available such as 2 Way Manifold Valves , 3 Way Manifold Valves and 5 Way Manifold Valves .These Manifold Valves are used in pressure gauges, system impulse lines , differential pressure , Flow Recorder and switches.

Instrument manifold including single valve, two valve, three valve, five valve and distribution manifold valves. Pedlock is a Manifolds Valves Manufacturer in Ahmedabad, Mumbai, Vadodara, Ghaziabad, Rajasthan, Chennai, Bengalore, Delhi, Gujarat in India, are designed to provide a cost effective compact installation for gauge or transmitter instruments. Manifold Valves are constructed from stainless steel or any machinable metal including: carbon steel, Monel, Inconel titanium, hastelloy C.

Our range of instrument manifold valves reduce installation costs and fluid connections due to a simpler compact design.

Custom configurations for Instrument manifold valves are available to increase temperature and pressure ratings. If you would like any more information or have any questions you would like to discuss, please feel free to CONTECT

Basic Variants of Manifold Valves include.

2 Way Manifold Valve, R Type, Remote Mounting
2 Way Manifold Valve, T Type, Direct Mounting, One Side Flange
2 Way Manifold Valve, H Type, Direct Mounting, Both Side Flange
3 Way Manifold Valve, R Type, Remote Mounting
3 Way Manifold Valve, T Type, Direct Mounting, One Side Flange
3 Way Manifold Valve, H Type, Direct Mounting, Both Side Flange
3 Way Manifold Valve, Coplanar, Direct Mounting
5 Way Manifold Valve, R Type, Remote Mounting
5 Way Manifold Valve, T Type, Direct Mounting, One Side Flange
5 Way Manifold Valve, H Type, Direct Mounting, Both Side Flange
5 Way Manifold Valve, Coplanar, Direct Mounting

WAY : 2way ,3way, 5way

Type : R-Type,T-Type,H-Type

Connection : ½” BSP/NPT

Pressure : 6000psi to 10000psi

Moc : CS , SS304 , SS316

The design and functions of a manifold valves

Your typical PED-LOCK manifold valves will consist of the following key design features:

T bar for ease of operation.
Gland packing adjuster to adjust gland wear compensation.
Valve bonnet with replaceable bonnet sealing washer arrangement.
Anti-rotational thrust brush to ensure uniform packing compression, maximising pressure tight sealing and limiting cold flow passages.
Bonnet/body washer ensuring complete atmospheric leakage and allowing on-site retrofit of bonnets with 100% re-sealing assurance.
Dual cap serving two purposes: firstly, it prevents airborne debris from contaminating the operating spindle thread and secondly, it provides a colour-coded functional identification.
Gland adjuster lock nut that prevents the inadvertent gland adjuster loosening.
Anti-blowout spindle designed for low torque operation with high quality micro mirror stem finish for positive gland sealing.
Gland packing to provide maximum sealing with minimum air adjustment.
Spindle tip which gives a bubble tight shut off to ensure the user of a leakage free performance and downstream functional safety.

These features of our parker valve manifolds can vary slightly depending on what valve manifold you choose of course.

Advantages of using a manifold valves

Manifolds Valves can be useful in many situations, from small mobile machines to heavy industrial plants. Centring any fluid power system, manifold valves improve efficiency, and reduce energy costs. Here are a few more benefits of manifold valves:

Increased energy efficiency with shorter flow paths that minimise pressure drop and heat.
Reduced installation costs and fluid connections due to simpler compact design.
Reduced oil leaks and upkeep with less connections that can fatigue, wear and loosen.
Small and compact sizes with cartridge valve design to suit confined spaces.
Improved overall layout with less cumbersome hoses and fluid connections.
