SS Instrument Check Valves Manufacturer and Supplier in India

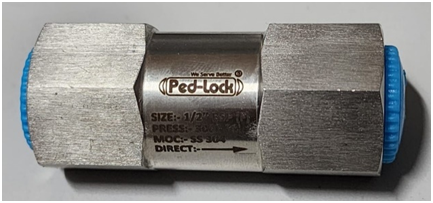

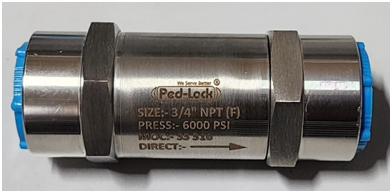

SS Check Valves Manufacturer

We are leading 6,000 Psi SS Check Valves Manufacturer and Supplier of Instrument Valves. Pedlock is an Exporter and Supplier of types Check valves in Mumbai, Chennai, Ahmedabad, Vadodara, Gujarat, Rajasthan, Bengalore, Delhi and Ghaziabad from India. as the same and carries out the same function i.e. allowing the fluids to flow in a single direction. Similarly, one other type is the Spring Check Valve that divides the seat into upstream and downstream. The spring surface applies pressure that holds together the valve sealing surface. A Poppet Check Valve is used as a checking point that helps in closing the flow before the flow reverses.

Instrument Check Valves

Our company is engaged in offering insturment SS Check Valve which is manufactured using optimum quality raw material, which is obtained from reputed vendors of market. Check Valve used in chemicals, fats and fertilizer, ship building and construcion industry etc.

Check Valves and SS Check Valves Manufacturer

Rating : Up to 6,000 psi @ up to 250ºF

Stem & Body Seal : ‘O-ring (Nitral&Viton)

Tube Size : 1/4” to 3”

Connections : Tharded

Body : Bar Stoke & Forged Steel

Material : SS, CS and other Material Other as Per Your Requirements

Application

Chemicals industry
Fats and fertilizer industry
Ship building
Construction industry

Key Features

SS 316 construction for corrosion resistance, full or reduced bore for excellent flow. Peek/delrin seat for better performance.
Ball hard chrome plated for smooth operation.

Physical Features

Pressure rating 400 kg/cm2

Testing

For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
Working pressure: 6000 psi (431 bar)

Hydro Tests

Performed with pure water at 1-1/2 times of the working pressure.
Other tests like helium, seismic are available upon request.
