S. S. 304 / S.S. 316Investment Cast Body & Shaft
Size : 1/4" to 2" BSP
High Performance Seals with fine lapped
Single & Double / Dual connection available
Different types of model as per application Normal, High Temperature &ChilledWater
Body : CF8 / CF8M
Shaft : CF8 / CF8M
Temperature Range: 50° C ( Chilled Water & high temperature available on request)
Seals : High performance carbon filled PTFE
Pressure range : Upto 10 Kg/cm2
RPM : 300 Maximum
Media : Air, Water, Oil & Gas (Normal Application)
Rating : Up to 6,000 psi @ up to 180ºF
Stem & Body Seal : ‘O-ring (Nitral&Viton)
Seat Packing : PTFE
Tube Size : 1/4” to 3”
Connections : Tharded
Body : Bar Stoke & Forged Steel
Material : SS, CS and other Material Other as Per Your Requirements
Application
Key Features
Physical Features
Testing
Hydro Tests
PressureRating : Up to 1,000 psi @ up to 180ºF
Seat Packing : Ptfe& Peek
Tube Size : 1/4” to 1/2”
Connections : Tharded
Body : Bar Stoke & Forged Steel
Material : SS, CS and other Material Other as Per Your Requirements
Application
Key Features
Physical Features
Testing
Hydro Tests
Ped-lock Pressure regulator for carbon dioxide (CO2).Pressure gauges for remaining pressure in the CO2 cylinder and the set pressure after reduction. Ped-lock The highest quality CO2 pressure regulator (made in india) by Oxyturbo, used by the professionals around the world. Unlike other regulators, these regulators come with 3 years warranty and are built to last a lifetime. The regulator is equipped with two gauges one for cylinder working pressure another for the output pressure reading, the fine tune needle valve can be precisely used to set the output of Co2 for a nano cube to larger planted aquariums along with hoseconnection to connect the co2 piping.
Ped-lock syphon is a straightforward device that helps shield the pressure gauge from hot substances like steam. Additionally, it reduces the potentially destructive effects of rapid pressure changes. Syphons, sold at reasonable prices,Gauge Syphon or civilian syphons are used to transfer stormwater or sewage water under the stream and in other depressions in the ground. syphon manufacturers recommend the use of these due to their ability to protect the pressure measuring instruments from pulsation in the environment and excessive heating. Pressure Gauge Syphon acts like a cooling element for fluids in measuring the pressure. High Pressure Syphon is used to directly connect pressure measuring devices and shut off devices underneath. U Type Umbrella Syphon is used in horizontal application since it allows the vapours to form and condense inside it thus preventing the vapours direct contact with the pressure instrument.
Ped-lock Air separator collects and puts out the air bubbles in the surface of the specially designed metal filter material. In this way, problems in installation and heat transfer equipment are prevented and the system is run healthy.Ped-lock Moisture Separator the removal of water is imperative to the successful operation of compressed/gas/steam systems. Water causes corrosion of pneumatic tools, instruments and machinery resulting in malfunctioning. The cost of replacement and/or repairs of equipment, coupled with the corresponding down-time can be eliminated. Moisture Separator unique coalescing element in conjunction with anti-re-entrainment barrier system knocks out 99.95% of moisture from compressed air/gas streams.
Material : Cast Iron (CI), Stainless steel (SS 202 / 304 / 316), Investment casting ( IC WCB / CF8 / CF8M ), Cast steel (CS), Forge steel ( A105 / 304 / 316 ), Polypropylene (PP)
Tube Size : 15mm to 25mm
Design : 1pc, 2pc, 3 pc
End Connections : Flange end, screw end, socket weld
PED-LOCK S.S. Gauge Glass Cock that is best suited to manually control the flow of water, oil, grease or any other viscous & semi-viscous liquids. Our professionals manufacture these products by making use of excellent quality stainless steel in the production process. This S.S. Gauge Glass Cock is accessible in different specifications as per the need of the customers. Moreover, we also offer these products at pocket friendly price to the end user.
Ped-lock Gauge Glass Cock that offers higher levels of customer satisfaction through their incomparable long lasting services. This gauge glass cock is developed to monitor the water or liquid levels in tanks. Furthermore, our gauge glass cock is inspected by quality controllers so as to ensure its flawlessness.
|
Pressure, Temperature Rating |
Up to 50kg/cm2, 300degC |
|
M O C |
CS/SS 304/SS316/Monal |
|
Size and CC Range |
15NB to 300NB |
|
Process Connection |
Any international standard |

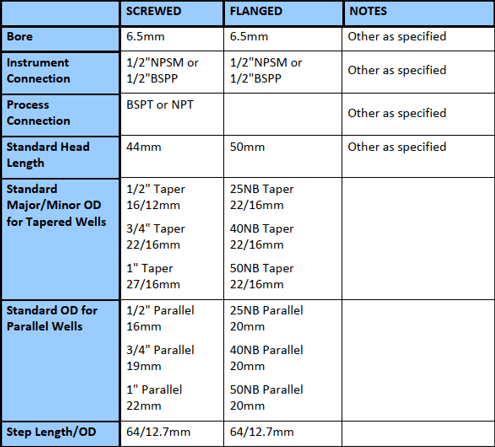

PED-LOCK Thermowells can be connected to an RTD, thermistor or thermocouple head by means of several different connection types. Some of the most common are:
Threaded connections are made of materials that can be welded or brazed and provide additional strength. In processes where contaminants from threads must be avoided such as in the food and pharmaceutical industries, weld-in connections are commonly used. O-ring connections use an O-ring to seal inside a sleeve welded to a tank. The double weld construction of the ANSI B16.5 flanged thermowell seals open joints both internally and externally to prevent corrosive substances from entering crevices.
PED-LOCK Thermowell process connections:Thermowells are inserted into and connected into a process in a pressure tight manner. The most common process connections for thermowells include threaded, socket weld, and flanged connections.
PED-LOCK Thermowell shank construction: The most common shank constructions for thermowells are (1) straight, (2) step, and (3) tapered. A straight shank Thermowell is the same size all along the immersion length of the Thermowell. A step shank Thermowell has an outer diameter of at the end of the thermowell immersion length to provide a quicker response time. In a tapered Thermowell the outside diameter of the Thermowell decreases gradually along the immersion length of the Thermowell. A heavy duty tapered thermowell is typically used for high velocity applications due to the specification of a tapered thermowell shank in the old ASME PTC 19.3 (1974) thermowell standard. However, where the nozzle inside diameter is a design constraint the straight shank thermowell design is often the most resistant to velocity induced resonance.
